Walk into most Texas offices, restaurants, and retail showrooms and you will notice something strange: the background music sounds thin. The speakers are mounted in the ceiling, the amps are tucked in a rack, but the low end is missing. Commercial in wall subwoofers fix that exact problem. They add the bass foundation that makes music feel full and video conferencing audio sound natural, without a single visible speaker cabinet or a floor-standing subwoofer blocking a walkway. We design and install these systems across Houston, Dallas, Austin, and San Antonio, and this guide explains how they work, what to specify, and why the amplifier matters as much as the driver.

Why Commercial Spaces Need In Wall Subwoofers

Background music in a commercial space has a different job than music in a living room. It sets the tone, fills silence, and supports the brand. But ceiling-mounted speakers, even good ones, roll off below roughly 80 Hz. The result is music that lacks weight, plus a system that sounds small even when the volume is reasonable.

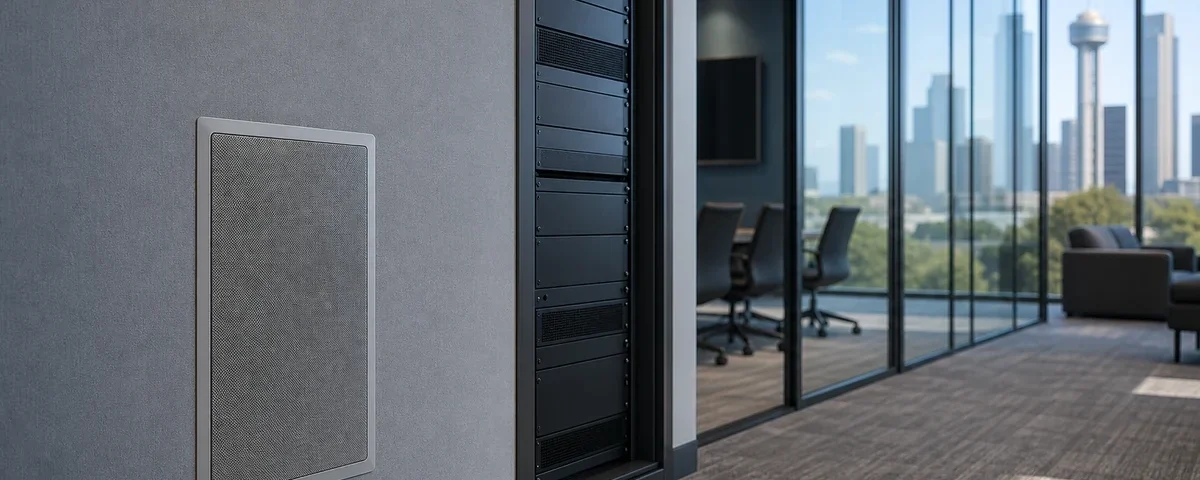

Commercial in wall subwoofers are built to disappear into the architecture while handling the low frequencies that ceiling speakers cannot. They mount flush in a wall cavity, fire into the room, and deliver the bass that makes a lobby feel polished and a restaurant feel lively. For facilities managers and business owners across Houston, Dallas, Austin, and San Antonio, this means one clean design decision instead of a visible subwoofer cabinet sitting in a corner.

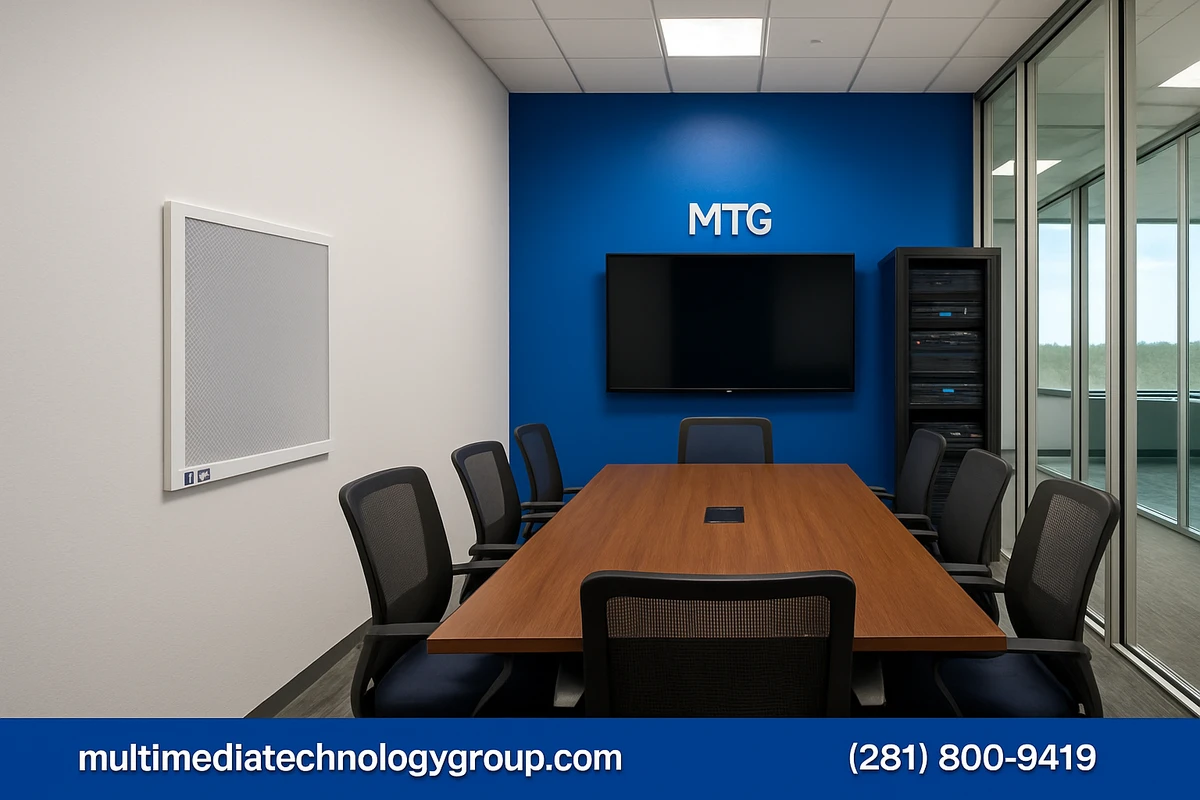

The other major use case is conference room audio. Video calls sound hollow when the system cannot reproduce lower vocal frequencies and room tone. A well-placed in wall subwoofer, paired with a proper subwoofer amp, gives presenters a natural voice and makes remote participants sound like they are in the room.

How In Wall Subwoofers Differ From Standard Ceiling Audio

A typical commercial background music system uses 70V distributed audio with ceiling speakers on a constant-voltage line. That architecture is excellent for even coverage, but it is not designed for deep bass. In wall subwoofers operate on a different principle:

• They are direct-coupled, not 70V. A dedicated subwoofer amp drives them with a line-level signal and plenty of headroom, so they reproduce 30-80 Hz cleanly.
• They need their own channel. You cannot simply wire a subwoofer into a 70V tap. The system needs a dedicated sub output or a separate amplifier zone.
• They are placement-sensitive. Bass builds up in corners and cancels in room centers. A commercial in wall subwoofer install starts with a room analysis, not a guess.

This is why we treat subwoofer integration as a design task. The speaker is only half the equation. The subwoofer amp, the crossover settings, and the room position determine whether the system sounds tight or boomy.

Subwoofer Amps: The Part People Under-Spec

Every commercial in wall subwoofer needs a subwoofer amp that can actually drive it. The most common mistake we see in retrofit projects is pairing a good subwoofer with an under-powered or mismatched amplifier.

What to look for in a commercial subwoofer amp:

• Power rating matched to the driver. A subwoofer rated for 250 watts continuous needs an amp that delivers that at its impedance, with 20-30% headroom. Under-powering causes clipping, and clipping destroys subwoofers faster than any other failure mode.
• Line-level inputs and outputs. The amp should accept a balanced line-level input from the DSP or mixer, and pass the signal through to the main amplifier cleanly.
• Crossover and phase controls. A built-in low-pass crossover around 80 Hz and a phase switch let the installer blend the subwoofer with the ceiling speakers.

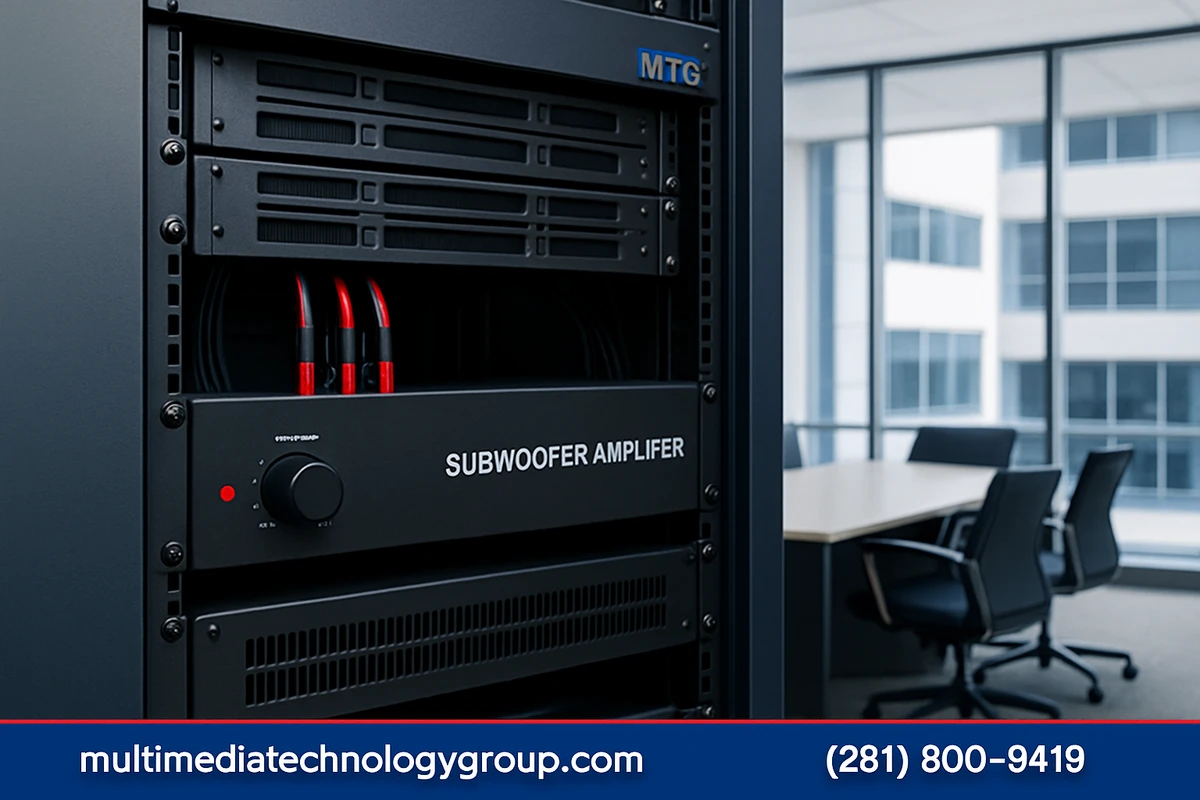

• Rack-mount design. Commercial gear belongs in the rack. A rack-mount subwoofer amp keeps the equipment room clean and serviceable.

Brands that consistently perform in our commercial installs include Martin Logan for reference-grade architectural bass and KEF for precision driver design. Sonance and Klipsch also make capable in wall subwoofers that we spec in value-conscious projects. The right choice depends on the room size, the ceiling speaker system, and the client’s expectations for bass quality.

Designing a Commercial In Wall Subwoofer System

A successful commercial in wall subwoofer system follows a repeatable process. We use this same sequence in office build-outs, restaurant rollouts, and retail environments:

1. Measure the room. Cubic volume, ceiling height, and construction materials all affect bass response. A 1,200 square foot restaurant with open trusses needs different subwoofer placement than a 400 square foot conference room.
2. Calculate coverage. One in wall subwoofer covers roughly 800-1,200 square feet of open space, depending on the driver size and the room. Larger spaces need multiple subwoofers with the amps set to the same crossover.
3. Place for even response. Corners maximize output but can boom. Near the main listening or seating area, placed against a structural wall, usually wins for balance.
4. Set the crossover. 80 Hz is the standard starting point. We tune from there based on the ceiling speaker response.
5. Calibrate with a measurement mic. Commercial spaces have HVAC noise, hard surfaces, and unpredictable furniture. A measurement-based calibration beats ear-based setup every time.

For businesses standardizing across multiple locations, we repeat this process per site and document the settings so every location sounds consistent. That is the difference between a system that was designed and a system that was assembled.

Where Commercial In Wall Subwoofers Deliver the Most Value

• Restaurants and bars: Background music with real bass keeps energy up without shouting over conversation. An in wall subwoofer under the bar or in a booth wall disappears completely.
• Retail and showrooms: Music is part of the brand experience. Clean low end makes the space feel premium, and hidden subwoofers keep sightlines open.
• Conference rooms and huddle spaces: Fuller voices on video calls, better room tone, and no visible equipment. This pairs naturally with our conference room AV installation services.
• Lobbies and waiting areas: A polished first impression starts with audio that sounds intentional.
• Hospitality venues: Consistent bass across a venue makes the whole space feel cohesive, from the bar to the dining floor.

Common Installation Mistakes to Avoid

Placing the subwoofer where the bass can’t escape. In wall subwoofers need an open cavity and a path into the room. Wall cavities stuffed with insulation or blocked by structural members choke the output. We spec the right rough-in box before drywall goes up.

Skipping the dedicated amp. A receiver’s internal amplification is rarely enough for commercial duty cycles. Commercial spaces run audio 10-14 hours a day, and a dedicated subwoofer amp rated for continuous use is the right tool.

Using the wrong crossover. Let the subwoofer handle 80 Hz and below, and let the ceiling speakers handle everything above. Overlapping ranges cause mud; gaps cause thinness.

Ignoring the DSP. In a commercial system, the DSP sets the tonal balance. The subwoofer amp needs a clean feed from the DSP, not a post-EQ signal that has already been altered.

Forgetting about code and low voltage runs. In wall subwoofers and their amps are low voltage systems, but the rough-in still needs to respect local building code. Our low voltage installation guide covers the requirements we follow on every project, and our structured cabling services handle the backbone that carries the signal.

Specifying the Right System for Your Business

When we sit down with a facilities manager or business owner, the questions are always the same: what will this cost, how long will it take, and will it actually sound good? Here is the honest breakdown:

• Small conference room (1 subwoofer + amp): $1,200-$2,500 installed, including rough-in, wiring, and calibration.
• Mid-size restaurant or retail (2 subwoofers + amps): $2,500-$5,000 installed.
• Multi-zone rollout (4+ zones): priced per zone, with volume discounts for standardization across locations.

Commercial in wall subwoofers are a permanent part of the building. That means the cost is a capital investment, not a disposable purchase. Done right, the system runs for 10+ years with minimal maintenance.

Frequently Asked Questions

Can in wall subwoofers work with an existing ceiling speaker system?

Yes. If the existing system has a DSP or mixer with an available output, we add the subwoofer amp and in wall subwoofers as a dedicated bass zone. The crossover blends them with the existing ceiling speakers. This is the most common retrofit we do in Houston, Dallas, Austin, and San Antonio offices and restaurants.

Do in wall subwoofers require a 70V amplifier?

No. In wall subwoofers are direct-coupled drivers that need a dedicated subwoofer amp with a line-level input. They do not tap into a 70V distribution line. Some DSPs handle the crossover internally and feed the subwoofer amp a dedicated low-pass signal.

How many in wall subwoofers does my space need?

As a rule of thumb, one subwoofer covers roughly 800-1,200 square feet of open space. Rooms with hard surfaces, high ceilings, or heavy HVAC noise may need more. We measure the room and model the coverage before recommending a count.

Are in wall subwoofers a good fit for restaurants?

Yes. Restaurants benefit the most because background music needs bass to feel full, and visible subwoofer cabinets take up floor space that operators need for seating. In wall subwoofers mount flush in a wall or under the bar, and the amp lives in the equipment rack.

How long does a commercial in wall subwoofer installation take?

A single-zone installation in an existing building typically takes one to two days, including rough-in, wiring, amplifier setup, and calibration. New construction installs are faster because the wall cavities and wire runs are open before drywall.

Do you install these systems across Texas?

Yes. We design and install commercial AV systems in Houston, Dallas, Austin, and San Antonio, with Houston as our primary market. We also support multi-location rollouts for businesses standardizing audio across several sites.

Ready to Add Real Bass to Your Commercial Space?

In wall subwoofers are the cleanest way to fix thin-sounding audio in offices, restaurants, retail, and conference rooms. We handle the design, the rough-in, the amplifier selection, and the calibration, with a single point of contact for your project.
